home > New released functions on Expressus Version 2.83 > Create sections

Create sections by picking the position.

Click 'Create Section' button in the tool bar

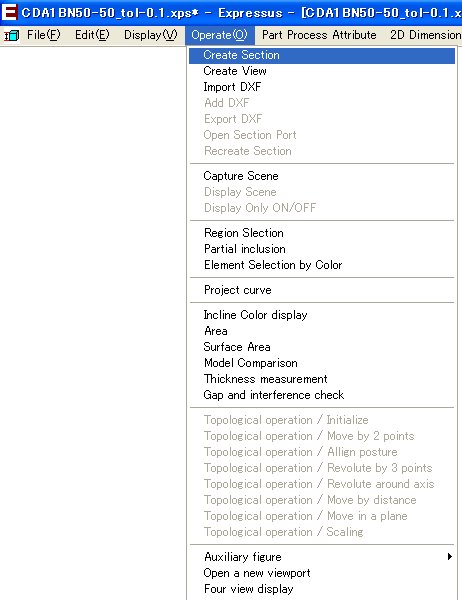

Or select 'Create Section' from Operate in the menu bar.

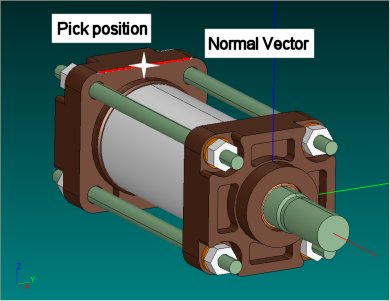

Pick of the direction of the line cross to a section and the sectional position.

'Create Setion' dialog box is displayed.

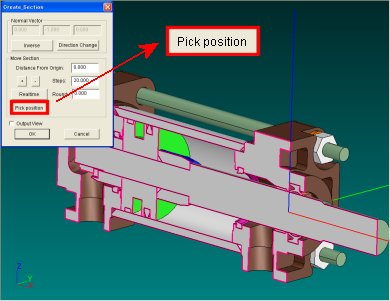

You can pick-direct the sectional position by clicking 'Pick Position' button.
