Create dimensions and notes with sufficient visibility.

Direct the dimension drawing plane for a whole coordinate system.

It is for determining the plane which elements are drawn on when creating dimensions and notes on 3D port.

Dimension drawing plane mode has 4 postures as XY plane, YZ plane, ZX plane, and Screen.

Change Dimension drawing plane mode before creating dimensions and notes.

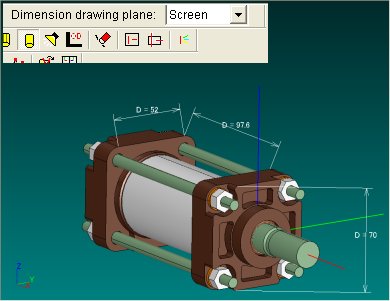

* When it's Screen...

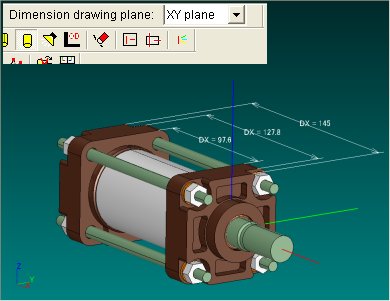

* When it's XY plane...

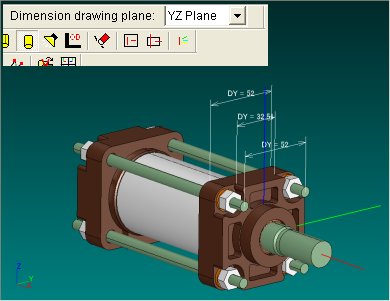

* When it's YZ plane...

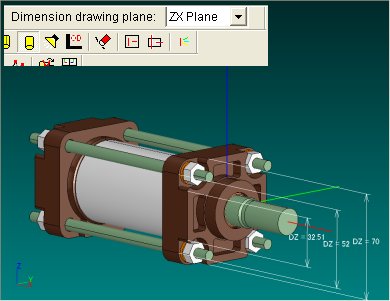

* When it's ZX plane...
