New functions at Expressus Version 4.20

  • New part type 'Interlock Cam'
    • Complexed cam mechanisms can be expressed by using this 'Interlock Cam'.
    • Fillar cam, pad embedded cam and multi linked cam can be defined.
    • This part type is very powerful and useful.
PressMotion

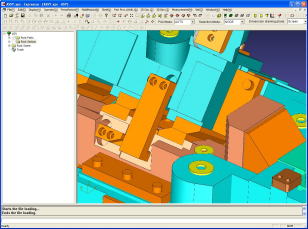

Fillar cam exsample
Click to see video
Pad embedded cam exsample
Click to see video

  • Video compression on AVI output

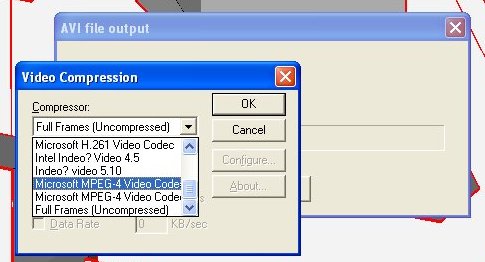

    • You can select a video compression format (i.e. MPEG-4 Video Codec V2 etc.) on AVI output.
    • The file size will be one-tenth and playback will be smooth.

Delete key can be used on deletion in 3D view and 2D view.

  • This command shows isometric view instantly.

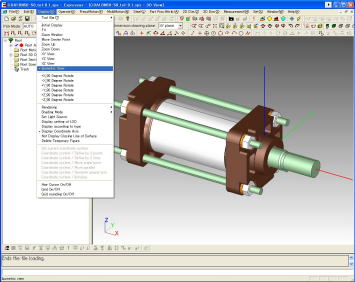

'Isometric view' command

  • Measurement number and mark is displayed in a figure port as a temporary element on coordinate value measurement command.
  • The measurement number is taken over until erase temporary elements.
Temporary display of measurement number and mark

  • Following modules are improved.
  • CATIA V5, Solidworks, SolidEdge, Parasolid, UG
Improvement of data exchange module

Simplified Chinese version release has suspended.
